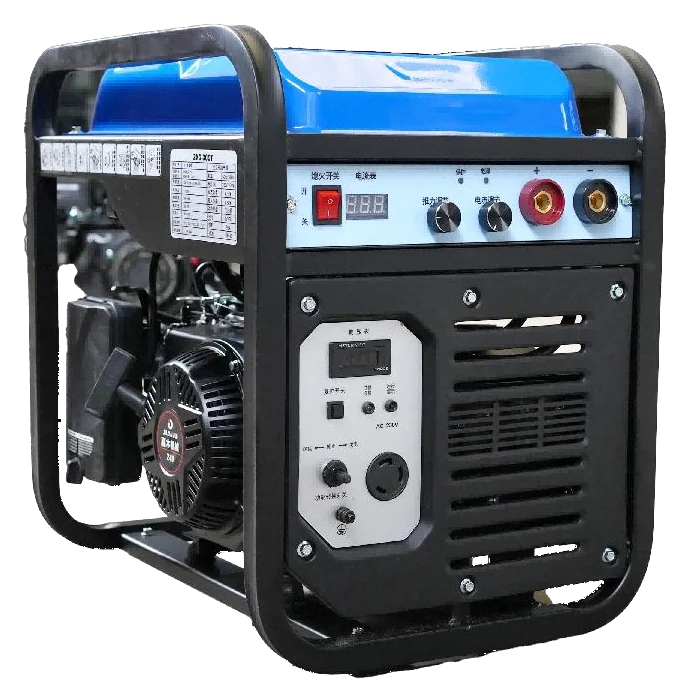

Product image 1Product appearance may vary by model and configuration. Please refer to the final confirmed documents.
Portable Generators · Gasoline Generator Welder
130A / 160A Gasoline Generator Welders
Models: 130A / 160A
Mobile power generation and manual arc welding with 130 A and 160 A current ratings.
This page groups images and specifications for related models so you can compare output, capacity, starting method, dimensions, and weight.
Specifications are organized from the supplied product information. Confirm frequency, voltage, phase, starting method, and optional features before ordering.
Product features
Series Overview
- Four-stroke gasoline engine
- Manual arc welding
- Recoil start
- Continuous operation
Model Range
This group includes 2 models
- Product Category
- Gasoline Generator Welder
- Model
- 130A / 160A
- Data Source
- Company product information
Model Comparison
Reference details
Scroll horizontally to view all models.
| Specification | 130A | 160A |
|---|---|---|
| Fuel | Gasoline | Gasoline |
| Output Power | DC 1 kW | AC 5 kW |
| Rated Voltage | DC 230 V | AC 230 V |
| Frequency | 50 Hz | 50 Hz |
| Engine Oil Capacity | 0.6 L | 0.6 L |
| Fuel Tank Capacity | 3.8 L | 15 L |
| Welding Method | Manual arc welding | Manual arc welding |
| Starting Method | Recoil start | Recoil start |
| Operating Mode | Continuous | Continuous |
| Working Voltage | 22–28 V | 18–28 V |
| Open-Circuit Voltage | 55–65 V | VRD off: 75 V; VRD on: ≤24 V |
| Engine Configuration | Four-stroke | Four-stroke |
| Electrode Diameter | 2.5–3.2 mm | 1.0–4.0 mm |
| Current Adjustment Range | 70–130 A | 10–160 A |
| Engine Model | T170 | 172FB |
| Duty Cycle | >60% | 30%–100% |
| Displacement | 236 cc | 236 cc |
| Dimensions | 420×400×460 mm | 520×380×500 mm |
| Weight | 29 kg | 38 kg |
Shared specifications not listed separately for each model are shown as common configurations for the group. Final specifications are subject to the quotation confirmation.
Before you inquire
Confirm the Required Configuration
Provide the target model, rated output, output voltage, frequency, phase, starting method, estimated quantity, and destination.
