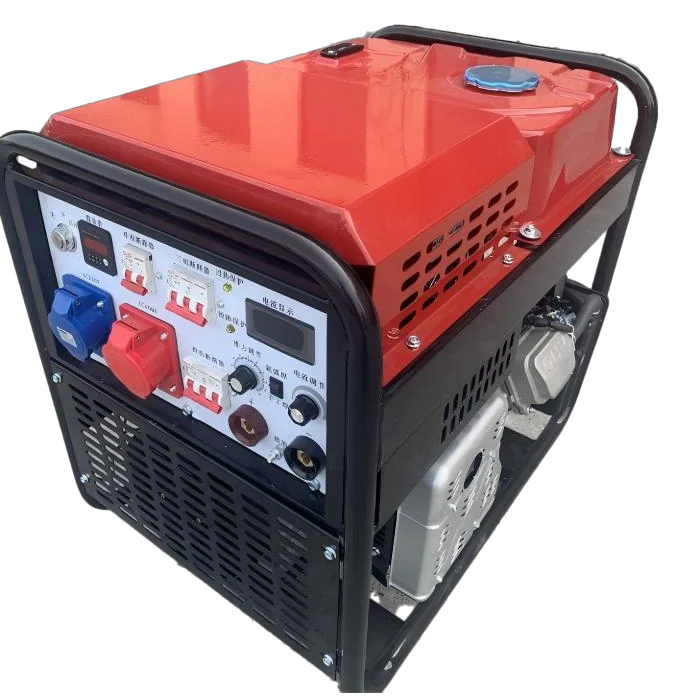

Product image 1Product appearance may vary by model and configuration. Please refer to the final confirmed documents.
Portable Generators · High-Current Gasoline Generator Welder
200A / 250A Gasoline Generator Welders
Models: 200A / 250A
Welding current up to 250 A with 3.5–8 kW AC generator output.
This page groups images and specifications for related models so you can compare output, capacity, starting method, dimensions, and weight.
Specifications are organized from the supplied product information. Confirm frequency, voltage, phase, starting method, and optional features before ordering.
Product features
Series Overview
- Four-stroke gasoline engine
- Manual arc welding
- Up to 250 A current
- 25 L fuel tank
Model Range
This group includes 2 models
- Product Category
- High-Current Gasoline Generator Welder
- Model
- 200A / 250A
- Data Source
- Company product information
Model Comparison
Reference details
Scroll horizontally to view all models.
| Specification | 200A | 250A |
|---|---|---|
| Fuel | Gasoline | Gasoline |
| Output Power | AC 3.5 kW | AC 8 kW |
| Rated Voltage | AC 230 V | AC 230 V |
| Frequency | 50 Hz | 50 Hz |
| Engine Oil Capacity | 1.1 L | 1.2 L |
| Fuel Tank Capacity | 25 L | 25 L |
| Welding Method | Manual arc welding | Manual arc welding |
| Starting Method | Recoil start | Recoil start |
| Operating Mode | Continuous | Continuous |
| Working Voltage | 20–28 V | 20–28 V |
| Open-Circuit Voltage | 90 V | 90 V |
| Engine Configuration | Four-stroke | Four-stroke |
| Electrode Diameter | 1.5–6.0 mm | 1.0–6.0 mm |
| Current Adjustment Range | 40–200 A | 20–250 A |
| Engine Model | GX390 | Not separately specified in the source material |
| Duty Cycle | 80% | 60% |
| Displacement | 389 cc | 500 cc |
| Dimensions | 730×570×830 mm | 730×515×800 mm |
| Weight | 90 kg | 150 kg |
Shared specifications not listed separately for each model are shown as common configurations for the group. Final specifications are subject to the quotation confirmation.
Before you inquire
Confirm the Required Configuration
Provide the target model, rated output, output voltage, frequency, phase, starting method, estimated quantity, and destination.
